The Duat Text Editor

Duat is a text editor that is built and configured in the Rust programming language. It is meant to be very modular in its design, while still having great defaults for anyone used to TUI and modal text editors.

Installation

In order to begin using Duat, you will need cargo installed in your system. See cargo's installation instructions for more info. After installing cargo, you will want to make sure you're using rust's nighlty features:

rustup install nightly

Now, you can go ahead and install duat using cargo. Duat will be installed for the current user, in the ~/.cargo/bin/ directory:

cargo install duat

Or, if you want the master version of duat, from the latest commit, you can do this:

cargo install --git https://github.com/AhoyISki/duat --features git-deps

When calling either of these commands, if it didn't already exist, a default version of Duat's configuration will be installed in $XDG_CONFIG_HOME/duat (~/.config/duat for Linux). If you want to get the latest version of the default configuration, you can just remove that, alongside other directories used by Duat:

rm -rf ~/.config/duat/ ~/.cache/duat/ ~/.local/share/duat/
cargo install --git https://github.com/AhoyISki/duat --features gid-deps

If you don't have ~/.cargo/bin/ in your $PATH variable, you should add that in order to be able to call duat. Alternatively, you may add just ~/.cargo/bin/duat, if you don't want to bring the other things in ~/.cargo/bin/ to global executable scope.

At this point, you should be able to use Duat by calling duat or duat some_file. The first time you run duat, the compilation of the config crate will take a while, but after running the reload command from duat, it should recompile in ~0.5 to ~2.5 seconds, depending on what you changed in the config.

To see how you can configure duat, look at the next chapter in this book.

Quick settings

First of all, before you start anything, you should try to become at least somewhat accustomed to how rust works as a programming language. If you don't know anything at all, the rust book is a great place to start learning.

One of the main aspects that Duat tries to accomplish is an emergent complexity for its features. That is, the more you learn about Duat, the easier it becomes to learn new things about it. Every feature should help you understand other features.

That being said, here are some quick settings, which should hopefully compose later on to help you better understand duat.

The setup function and setup_duat!

In order for Duat to be able to run your config crate in ~/.config/duat, it needs to have at the very least this in it:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;

fn setup() {}
}

That's because Duat will call the setup function (after some initial setup, and before some final setup) in order to do the initial setup for duat. For all intents and purposes, treat the setup function as if it were the init.lus on a neovim configuration, as it will do all the setup for Duat.

Of course, not everything needs to be placed inside of this function. For example, you could separate the plugins into a separate function, if you think that will look cleaner:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;

fn setup() {
    add_plugins();
}

fn add_plugins() {
    plug!(
        treesitter::TreeSitter,
        kak::Kak::new(),
        catppuccin::Catppuccin::new()
    );
}
}

The plug! macro

The plug! macro serves the purpose of adding plugins to Duat. Every plugin will have its own configuration options, that you will need to look at their documentation to understand. But they should all be configured in the same way:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;

fn setup() {
    plug!(
        kak::Kak::new()
            .f_and_t_set_search()
            .with_no_indent_on_capital_i(),
    );
}
}

In this case, the Kak plugin (from duat-kak) is being modified via the builder pattern in order to have the following settings:

• The f and t keys will set the search pattern, so n will look for it.
• When pressing I, don't reindent.

Then, it is being added to Duat. The f_and_t_set_search and with_no_indent_on_capital_i modify the Kak plugin and then return it back to be plugged. This is the builder pattern, and is how all plugins are added.

The prelude module

At the top of your crate, you should be able to find this:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;

fn setup() {
    // The stuff inside your setup...
}
}

This will import everything in the prelude module of duat. This should have everything you will need in order to configure Duat, not including things from other crates that you may want to import (such as plugins).

When calling use duat::prelude::*, most imported things will be in the form of modules, like this:

#![allow(unused)]
fn main() {
use duat::print;
}

This is importing the print module, as opposed to importing its items directly, like this:

#![allow(unused)]
fn main() {
use duat::print::*;
}

This means that, for most options, their path is made up of a {module}::{function} combo. This means that the usual config crate should look something like this:

#![allow(unused)]
fn main() {
mod kak {
    use duat::{prelude::{*, mode::KeyEvent}};
    #[derive(Clone)]
    pub struct Insert;
    impl Mode<Ui> for Insert {
        type Widget = File;
        fn send_key(&mut self, _: &mut Pass, _: KeyEvent, _: Handle<File>) {
            todo!();
        }
    }
    pub struct Kak;
    impl Kak {
        pub fn new() -> Self { Self }
    }
    impl duat_core::Plugin<Ui> for Kak {
        fn plug(self) {}
    }
}
setup_duat!(setup);
use duat::print::*;

fn setup() {
    plug!(Kak::new());

    print::wrap_on_cap(150);
    print::trailing_new_line('󱁐');

    form::set("caret.main", Form::yellow());

    cmd::add!("set-rel-lines", |pa, ln: Handles<LineNumbers<Ui>>| {
        ln.on_flags(pa, |pa, handle| {
            handle.write(pa, |ln, _| ln.options = ln.options.rel_abs());
        });
    });

    map::<Insert>("jk", "<Esc>:w<Enter>");
}

}

The exceptions to this are the map and alias functions, as well as the plug! and setup_duat! macros. These items are imported directly.

The following chapters should give a quick overview of these items imported from the prelude module.

print: How duat prints files

The print module has a bunch of simple functions to change how duat should print File widgets:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;

fn setup() {
    print::no_wrapping();
    print::indent_wraps(true);
    print::tabstop(4);
    print::scrolloff(3, 3);
    print::word_chars!("A-Za-z0-9_-_");
    print::new_line(' ');
}
}

These are the default options (for Files). One thing to note about this module, is that it is for Files and Files only. That is, nothing in here will affect other widgets, like LineNumbers or StatusLine. If you want to modify those, you can head over to the hook chapter.

The functions in this module will affect all files unconditionally, if you want to do that on a File by File basis, again, see the hook chapter.

This is the current list of options in this module:

• print::no_wrapping: The default, don't wrap text at all;
• print::wrap_on_edge: Wraps the text on the edge of its area;
• print::wrap_on_cap: Wraps at a distance from the left edge, can go over the right edge;
• print::wrap_on_words: Wraps on word termination, instead of any character;
• print::indent_wraps: Copies the indentation on wrapped lines, can be used with the other options;
• print::tabstop: The width of tabs, is also used to determine how many spaces a \t should add. Is 4 by default;
• print::new_line: What character to print when printing '\n's. Is ' ' by default;
• print::trailing_new_line: What character to print when printing '\n's that are preceeded by spaces. Is not set by default;

print::word_chars!

print::word_chars! is a macro that determines which characters should be part of a word. This is used by wrap_on_words and tends to also be used to modify text (in the <Ctrl-Backspace> key in most editors, for example).

This macro is evaluated at compile time, so you don't have to worry about it being correct or not, and the syntax is the same as in regex, like this:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;

fn setup() {
    print::word_chars!("A-Za-z0-9---_-_");
}
}

In this case, every sequence of lowercase and capital letters, numbers, dashes and underscores would be considered part of a word.

form: How text is colored

In duat, the way text is styled is through Forms. The Form struct, alongside the form module, are imported by the prelude:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;

fn setup() {
    // Setting by Form
    form::set("punctuation.bracket", Form::red());
    form::set("default", Form::with("#575279").on("#faf4ed"));
    form::set("matched_pair", Form::blue().underlined());

    // Setting by reference
    form::set("accent.debug", "default.debug");
}
}

The main function that you will use from this module is form::set. This function sets the form with the given name on the left to the argument on the right. This argument can be of two types:

• A Form argument will just modify the named form to be shown like that;
• A &str argument will "reference" the form on the right. If the form on the right is altered, so will the one on the left. This reduces the need for setting a ton of forms in things like colorschemes;

How forms should be named

Every form in duat should be named like this: [a-z0-9]+(\.[a-z0-9]+)*. That way, inheritance of forms becomes very predictable, and it's much easier for plugin writers to depend on that feature.

There is one exception to this rule however, that being the defaut form. The default form, unlike other forms, can have Widget specific implementations, like default.StatusLine, which will change the default form only on StatusLines, and is set by default.

Colorschemes

The other main function that you will use from this module is the form::set_colorscheme function. This function will change the colorscheme to a previously named one:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;
use catppuccin::Catppuccin;

fn setup() {
    // Adds four colorschemes, "catppuccin-latte" among them.
    plug!(Catppuccin::new());

    form::set_colorscheme("catppuccin-latte");
}
}

Form inheritance

Another aspect of duat's forms that can save a lot of typing is the concept of Form inheritance. In Duat, forms follow the following structure:

• If form.subform is unset, it will reference form;
• If form.subform is set to Form::green(), it won't be changed when form changes, staying at Form::green();
• If form.subform is set to reference other_form, changing other_form will also change form.subform, but changing form won't;

As a consequence of this, for example, if you were to set the markup form to something, every form with a name like markup.* that isn't already set, would follow the change to the markup form.

Additionally, if the form f0.f1.f2 is set to something, the forms f0 and f1.f2 would also be set, although they will reference the default form in that situation, not whatever f0.f1.f2 was set to.

Masks

A mask is essentially the opposite of the inheritance concept. Instead of the longer form inheriting from the shorter forms, the shorter forms will be mapped for longer ones.

It works like this: Say I have a File widget, and in it, there are instances of the function form, used to highlight function identifiers. If there is a function.error form, and I tell the File to use the error mask, instead of using the function form, Duat will use function.error.

In duat, by default there are four masks: error, warning, info, and inactive. The first three are used primarily to show color coded notifications. The last one is unused, but you can use it to change how unfocused files should be displayed.

You can also add more masks through form::enable_mask. If you want to learn more about masks and how to use them, you should check out the masks chapter

map and alias: modifying keys

In Duat, mapping works somewhat like Vim/neovim, but not quite. This is how it works:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;
use kak::Kak;

fn setup() {
    // Adds kakoune-like editing modes, like Insert, Normal and OneKey
    plug!(Kak::new());

    map::<User>("f", "<Esc>|fold -s<Enter>");
    alias::<Insert>("jk", "<Esc>");
    alias::<Prompt>("jk", "<Esc>");
}
}

In mapping, there are two main functions: map and alias. map will take the keys as is, and if the sequence matches, outputs the remapping, otherwise, outputs the keys that were sent. alias does the same thing, but it also ""prints"" the sequence that was sent, making it look like you are typing real text.

In the functions, you can see a type argument. This type argument is the Mode where this mapping will take place. So here, in duat-kak's Insert mode, if you type jk, the j will show up as ""text"", but when you press k, you will immediately exit to Normal Mode.

User is a standard Mode in Duat. It is meant to be a "hub" for Plugin writers to put default mappings on. Sort of like the leader key in Vim/Neovim. On duat-kak, by default, this mode is entered by pressing the space bar. While you can change that like this:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;
use kak::Kak;

fn setup() {
    plug!(Kak::new());

    map::<Normal>(" ", "");
    // In rust, you have to escap a backslash
    map::<Normal>("\\", " ");
}
}

You can also do this:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;
use kak::Kak;

fn setup() {
    plug!(Kak::new());

    map::<Normal>(" ", "");
    map::<Normal>("\\", User);
}
}

This is allowed in order to support custom Modes. That way, you can just place the Mode as the second argument, and the mapping will switch modes, instead of sending keys. This also works with alias.

[!NOTE] In this case, since User is a struct with no fields, I could just put User as the second argument, which acts as a constructor. But in most other Modes, you're gonna have to write something like Insert::new() as the argument instead.

List of keys and modifiers

Syntax wise, the keys are very similar to vim style. Regular characters are placed normally, special keys are enclosed in <,> pairs, and modified keys are enclosed in these pairs, with a <{mod}-{key}> syntax. Examples:

• abc<C-Up><F12>.
• <A-Enter><AS-Left>.
• づあっと.

This is the list of recognized special keys:

• <Enter>,
• <Tab>,
• <Bspc>,
• <Del>,
• <Esc>,
• <Up>,
• <Down>,
• <Left>,
• <Right>,
• <PageU>,
• <PageD>,
• <Home>,
• <End>,
• <Ins>,
• <F{1-12}>,

And these are the allowed modifiers, which, as you can see above, can be composed together:

• C => Control,
• A => Alt,
• S => Shift,
• M => Meta,
• super => Super,
• hyper => Hyper,

cursor: How to print cursors

The cursor module is like the print module, in that it provides some basic options on how cursors should be printed. These options primarily concern if cursors should be printed as "real cursors" (The blinking kind, that can turn into a bar and stuff), or as just Forms.

• cursor::set_main will set the "shape" of the main cursor. This takes a CursorShape argument, and lets you set its shape to a vertical bar, a horizontal bar, and make it blink.
• cursor::set_extra is the same but for extra cursors. Do note that this may not work on some Uis, mainly terminals, which only allow for one cursor at a time.
• cursor::unset_main and cursor::unset_extra: Disables cursor shapes for every type of cursor, replacing them with a Form, which will be caret.main and caret.extra, respectively
• cursor::unset: The same as calling unset_main and unset_extra.

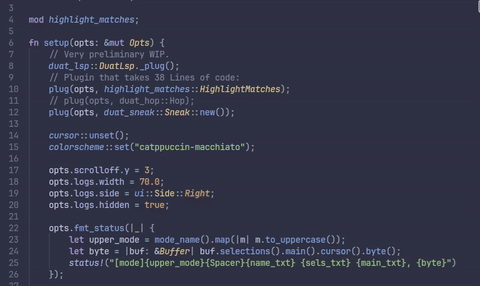

List of forms

Currently, in duat, these are the forms in use:

• default: Is applied to every text. Can be Widget dependent, like default.LineNumbers.
• accent: This form is used when formatting error, warning, information, or debug messages. Is used mostly with the error, warn and info masks.
• caret.main: The form to use when printing the main "caret" (each cursor has a selection, an anchor, and a caret).
• caret.extra: Same as caret.main, but for cursors other than the main one.
• selection.main: Color to be used on the main selection.
• selection.extra: Color to be used on extra selections.
• cloak: This form is supposed to be a common "get rid of all forms temporarily" form. You should use this when you want to, for example, remove all visible color from the screen, in order to highlight something. Some plugins make use of this form, like duat-hop and duat-sneak, which are recreations of some neovim plugins.
• alias: Is used on aliases, see the map and alias chapter for more information.
• matched_pair: Isn't technically part of duat, but it's part of a default plugin.

Some other forms are used by specific Widgets

• LineNumbers:

  • linenum.main: The form to be used on the main line's number.
  • linenum.wrapped: The form to be used on wrapped lines.
  • linenum.wrapped.main: Same, but for the main line, inherits from linenum.wrapped by default.

  Do note that you can set the form of the remaining lines by setting default.LineNumbers. And due to form inheritance, setting linenum will set all three forms.

• StatusLine:

  • file, file.new, file.unsaved, file.new.scratch: Are all used by file_fmt, which shows the File's name and some other info.
  • mode: Is used by mode_fmt.
  • coord and separator: Are used by main_fmt.
  • selections: Is used by selections_fmt.
  • key and key.special: Are used by cur_map_fmt.

• Notifications:

  • notifs.target: The form for the "target" of the notification.
  • notifs.colon: The form used by the ':' that follows the target.

  Since the Notifications widget makes heavy use of masks, you can also set notifs.target.error, if you want a different target color only when error messages are sent, for example.

• PromptLine:

  • prompt: For the prompt on the prompt line.
  • prompt.colon: For the ':' that follows it.
  • caller.info and caller.error: For the caller, if it exists or not, respectively.
  • parameter.info and parameter.error: For parameters, if they fit or not, respectively.
  • regex.literal, regex.operator.(flags|dot|repetition|alternation), regex.class.(unicode|perl|bracketed), regex.bracket.(class|group): A bunch of forms used for highlighting regex searches.

• LogBook:

  • log_book.(error|warn|info|debug): For the types of messages.
  • log_book.colon: For the ':' that follows them.
  • log_book.target: For the "target" of the message.
  • log_book.bracket: For the (s surrounding the target.

• VertRule:

  • rule.upper and rule.lower: The forms to use above and below the main line.

And finally, there are also all the forms used by duat-treesitter. Since the queries were taken from nvim-treesitter, the form names follow the same patters as those from neovim:

Frequently used snippets

If you just want some no nonsense snippets to copy paste into your config, this is the chapter for you.

For every snippet, assume that the snippet is placed inside of the setup function, given the following setup:

#![allow(unused)]
fn main() {
setup_duat!(setup);
use duat::prelude::*;

fn setup() {
    // Here be snippets.
}
}

mapping jk to esc

This one is pretty simple. Assuming you are using some sort of Insert Mode:

#![allow(unused)]
fn main() {
use duat::prelude::*;
use kak::Insert; // Or vim::Insert, or helix::Insert, when those come out.

map::<Insert>("jk", "<Esc>");
}

This will not print out the 'j' to the screen unless the following key is not 'k'. If you wish to print 'j' to the screen, use this:

#![allow(unused)]
fn main() {
use duat::prelude::*;
use kak::Insert;

alias::<Insert>("jk", "<Esc>");
}

Additionally, if you want to write to the file on jk as well, you can do this:

#![allow(unused)]
fn main() {
use duat::prelude::*;
use kak::Insert;

alias::<Insert>("jk", "<Esc>:w<Enter>");
}

If you want to, you can also make this happen on the PromptLine, i.e., while writing commands and searches:

#![allow(unused)]
fn main() {
use duat::prelude::*;
alias::<Prompt>("jk", "<Esc>");
}

StatusLine on each File

Prompt and Status on same line

Common StatusLine parts

The most relevant parts for pretty much every StatusLine are the following.

Formatted status parts:

• file_fmt: Prints the File's name and some info about it's newness.
  • Uses the forms file, file.new, file.new.scratch and file.unsaved
• mode_fmt: The lowercased name of the Mode, e.g. "insert", "normal.
  • Uses the form mode
• main_fmt: Prints the main selection's column and line, and the number of lines. 1 indexed.
  • Uses the forms coord and separator
• sels_fmt: Prints the number of selections.
  • Uses the form selections;
• cur_map_fmt: Prints the keys being mapped.
  • Uses the forms key and key.special

Unformatted status parts:

• main_byte, main_char, main_line, main_col: Parts of the main cursor.
• mode_name: The raw type name of the mode. Could look something like Prompt<IncSearcher<SearchFwd>, Ui>, Ui>
• selections: The number of selections, no formatting.
• last_key: The last key that was typed. Useful for asciinema demonstrations.

Other:

• Spacer: This isn't actually a StatusPart, it's a Tag that can go in any Text, which includes the StatusLine's.
• AlignLeft, AlignCenter, AlignRight: These Tags (like all others) can also be used in the StatusLine. However, do note that they are applied line wise. Using any of them will shift the whole line's alignment. For that reason, a Spacer should generally be preferred.
• Forms like [file]. Any form can be placed within those braces, and they are all evaluated at compile time.

Some examples

This is the default:

#![allow(unused)]
fn main() {
use duat::prelude::*;
status!("{file_fmt}{Spacer}{mode_fmt} {sels_fmt} {main_fmt}");
}

If you want a one sided StatusLine:

#![allow(unused)]
fn main() {
use duat::prelude::*;
status!("{Spacer}{file_fmt} {mode_fmt} {sels_fmt} {main_fmt}");
}

Customized main_fmt:

#![allow(unused)]
fn main() {
use duat::prelude::*;
status!(
    "{file_fmt}{Spacer} {mode_fmt} {sels_fmt}[coord]c{main_col} l{main_line}[separator]|[coord]{}",
    |file: &File| file.text().len().line()
);
}

Customized file_fmt:

#![allow(unused)]
fn main() {
use duat::prelude::*;

fn file_fmt(file: &File) -> Text {
    let mut b = Text::builder();

    if let Some(name) = file.name_set() {
        b.push(txt!("[file]{name}"));
        if !file.exists() {
            b.push(txt!("[file.new][[new file]]"));
        } else if file.text().has_unsaved_changes() {
            b.push(txt!("[file.unsaved][[has changes]]"));
        }
        if let Some("rust") = file.filetype() {
            b.push(txt!("[[🦀]]"));
        }
    } else {
        b.push(txt!("[file.new.scratch]?!?!?!")));
    }

    b.build()
}

status!("{file_fmt}{Spacer}{mode_fmt} {sels_fmt} {main_fmt}");
}

Relative and aligned LineNumbers

File wise tabstops

If you want to change the tabstop size per file, you can just modify the following snippet:

#![allow(unused)]
fn main() {
use duat::prelude::*;

hook::add::<OnFileOpen>(|pa, builder| {
    builder.write(pa, |file, _| match file.filetype() {
        Some("markdown" | "bash" | "lua" | "javascript" | "lisp") => {
            file.cfg.set_tabstop(2);
        }
        _ => {
            file.cfg.set_tabstop(4);
        }
    })
});
}

If you want, you can also set other options with this, like which characters should be a part of words. In this case, I'm adding '-' to the list:

#![allow(unused)]
fn main() {
use duat::prelude::*;

hook::add::<OnFileOpen>(|pa, builder| {
    builder.write(pa, |file, _| match file.filetype() {
        Some("lisp" | "scheme" | "markdown" | "css" | "html") => {
            let wc = word_chars!("A-Za-z0-9_-_---");
            file.cfg.set_tabstops(2).set_word_chars(wc);
        }
        Some("bash" | "lua" | "javascript" | "typescript") => {
            file.cfg.set_tabstops(2);
        }
        _ => {
            file.cfg.set_tabstops(4);
        }
    }
});
}

Nerdfonts StatusLine

[!IMPORTANT]

This chapter assumes that you are using some kind of nerd font in your Ui. This also goes for this page in the book. If you are not using some kind of nerd font in your browser, you will not be able to see the characters being displayed. For that, I will provide pictures.

If you want to nerd-fontify your StatusLine, you should probably redefine some of the status line parts:

#![allow(unused)]
fn main() {
use duat::prelude::*
fn file_fmt(file: &File) -> Text {
    let mut b = Text::builder();

    if let Some(name) = file.name_set() {
        b.push(txt!("[file]{name}"));
        if !file.exists() {
            b.push(txt!("[file.new]󰎔 "));
        } else if file.text().has_unsaved_changes() {
            b.push(txt!("[file.unsaved] "));
        }
    } else {
        b.push(txt!("[file.new.scratch]{}󰏫 ", file.name())));
    }

    b.build()
}
}

Scripting Duat

The Pass and Duat's global state

The hook module

The Text struct

Builder and txt!

Tags: manipulating Text

Modding the StatusLine

The context module

cmd: Runtime commands

Modifying the layout

Extending Duat

duat-core

Plugins

Widgets

Modes

Parsers
